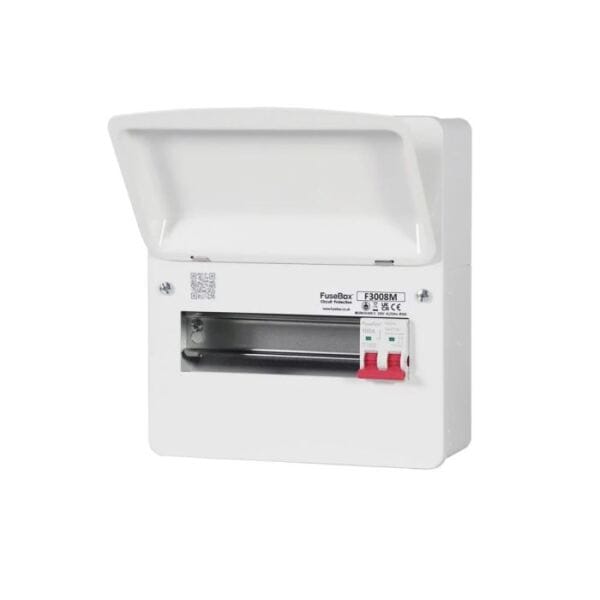

Fusebox F3008M 8 Way 100A Main Switch Consumer Unit

Description

The FuseBox F3008M 8-Way Consumer Unit is a robust, AMD3-compliant metal fuse box finished in smooth white. It features conduit knockouts on all sides and large rear knockouts for flexible cable entry. A removable key-slot DIN rail, along with top-mounted earth and neutral terminal bars, ensures a quick and tidy installation. Every unit comes supplied with blanks and a circuit identification label pack.

This model includes 8 usable ways, a 100A main switch incomer, and a 32mm tails clamp, with space available to add a Type 2 surge protection device (SPD) if required. As with all FuseBox consumer units, there is ample internal space to accommodate both mini and standard-height RCBOs.

Additional installer-friendly features include captive screws on the front cover, round knockouts on all four sides, and two large rectangular knockouts on the rear. The supplied installation pack contains a busbar, icon label pack, and a reinforced grommet strip for enhanced cable protection.

Key Features:

• 8-way main switch consumer unit

• Extra usable way compared to F2007M

• 100A main switch incomer

• Complies with EN 61439-3

• Earth and neutral terminal bars at the top

• Removable, raised DIN rail

• Round knockouts on all sides

• Extra height for RCBOs

• Circuit identification labels included

• Captive front cover screws

• Compatible with 100A tail clamps

• Compact metal design

Dimensions: H 263 mm × W 234 mm × D 116 mm
