Description
This installed audio bundle combines a black Q Acoustics E60 wall control and amplifier with one Qi65CWE Stereo IPX4 single stereo ceiling speaker and 1 Qi65CF fire/acoustic hood.
Audio features
- Built-in Class D stereo amplifier: 2 × 25 W continuous at 6 ohms.
- Bluetooth 5.0 wireless audio playback.
- Optical TOSLINK input for an external digital source.
- IP54 wall panel with touch-sensitive controls.
- Fixed or variable analogue line output for a subwoofer or additional amplifier.
Bundle contents
- 1 × E60 Black system pack.
- 1 × Qi65CWE Stereo IPX4 EasyFit ceiling speaker.

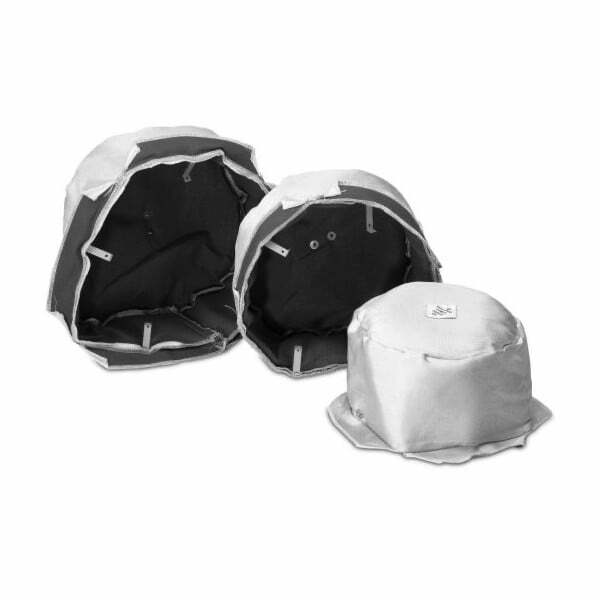

- 1 × Qi65CF fire/acoustic hood.
| Amplifier continuous output | 2 × 25 W at 6 Ω |
|---|---|
| Speaker impedance | 8 Ω |
| Speaker cut-out | 212 mm |
The E60 system includes its power supply and market-specific mains lead, mounting fittings and stud-wall installation box, two 7 m speaker cables, a 5 m power-supply extension cable, speaker plugs and user guide. Optical cable and the optional Source Input Module are sold separately.
Installation
Installation and a mains supply are required. Check the speaker clearance, wiring route and the tested fire/acoustic construction before fitting. Additional cable may be required for longer wiring routes.
The single stereo speaker accepts both left and right channels. Its IPX4 speaker rating and the wall panel’s IP54 rating apply to those individual components. Confirm the Qi65CF hood fit for this EasyFit model before ordering the complete bundle.
