Description
The Q Acoustics E300A is an installed stereo audio system with its amplifier built into a ceiling-mounted unit. It powers suitable passive ceiling or wall speakers and keeps the main electronics out of a conventional equipment cabinet. The E300A adds network streaming and integrated Alexa voice control.
Features
- Built-in Class D stereo amplifier: 2 × 25 W continuous at 6 ohms.
- Wi-Fi and Ethernet network audio connection.
- Amazon Alexa voice control, Spotify Connect, TIDAL Connect and AirPlay 2.
- Bluetooth 5.2 for playback from compatible devices.
- Analogue and mini-TOSLINK optical inputs for external sources.
- Remote handset and in-ceiling control/microphone unit.
Specifications
| Continuous amplifier output | 2 × 25 W at 6 Ω |
|---|---|
| Bluetooth | 5.2 |
| Installation | In-ceiling |
| Ceiling panel dimensions | 125 × 125 × 145 mm |
| Optical input | Up to 24-bit/96 kHz |
Supplied pack
System pack with two Q Acoustics Qi65C ceiling speakers.

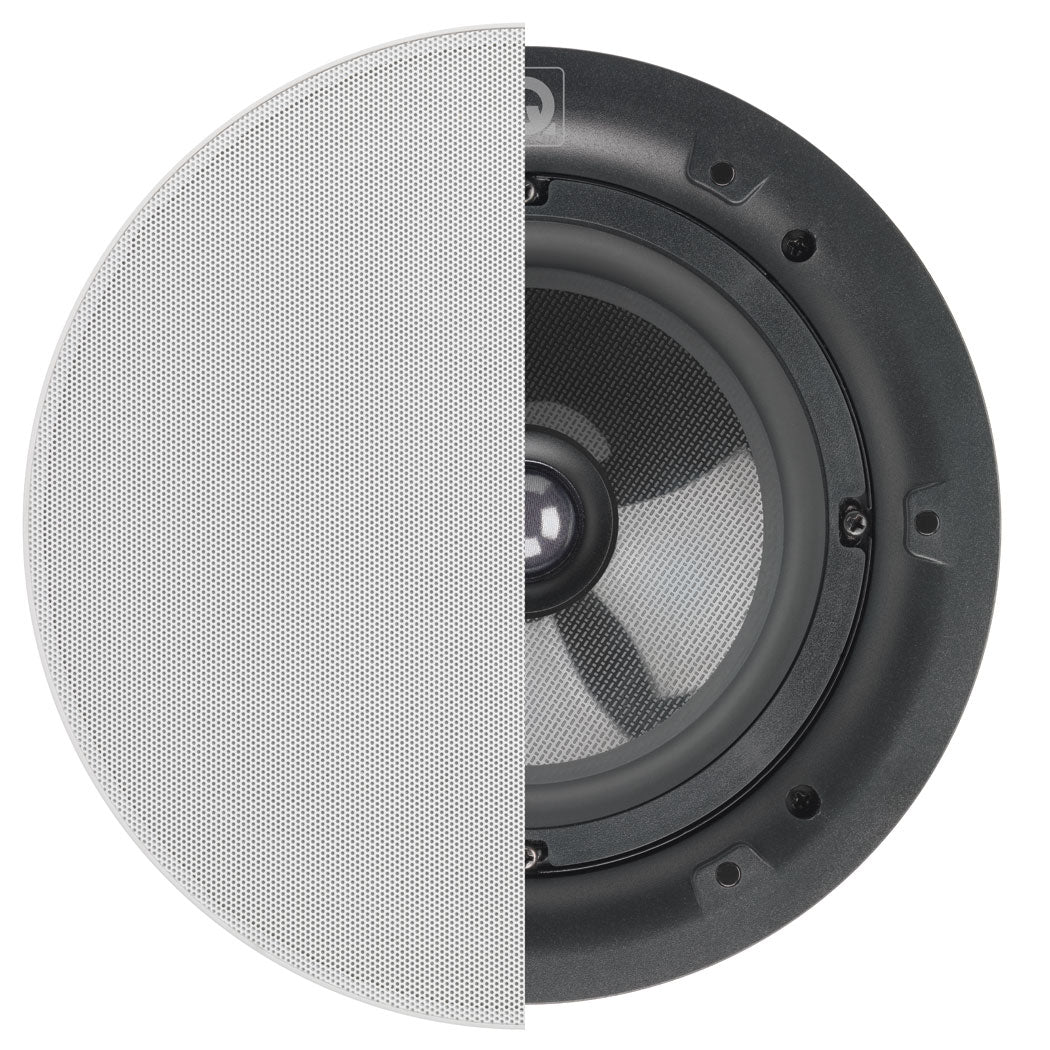

The Q Acoustics Q Install Qi65C is a passive in-ceiling speaker for discreet installed audio. It combines a 6.5-inch low-frequency driver with 19 mm swivelling tweeter high-frequency reproduction, keeping the loudspeaker within the building surface rather than occupying a shelf or floor position.
| Power handling, programme | 15–60 W |
|---|---|
| Nominal impedance | 8 Ω |
| Cut-out | 203 mm |
| Maximum rear depth | 79 mm |
System contents
E300A ceiling unit, two 4 m speaker cables, remote handset, power supply and mains lead, speaker connectors, mounting template and ceiling adaptor, and manuals.
Connection and installation
Requires installation, a mains supply and compatible passive speakers. Network streaming and voice functions require a network connection and relevant service accounts; subscriptions may be needed for some services.
